Specification                                                                                              download


Model

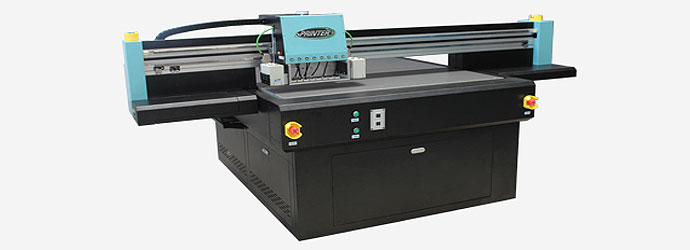

MAKECOLOR UVF1212 UV-LED printer
Color
C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Printhead
Drop on Demand
Top Resolution
UP TO 1440dpi
Speed
UP TO 14m2/h (8 heads double 4 color)
Media
Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.
Size of Material
Maximum Printing Area:
Panel:1.20m(width)x 1.20m(depth)
Maximum Material Size:
Panel:1.21m(width)x 1.21m(depth)
Thickness of Material
Panel:≤ 80mm
Weight of Material
Panel:≤ 40 kg/m2
Image format
Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on
Ink
Eco-friendly,highly durable UV ink with bright color
Ink Capacity
2.5L drums, automatic ink control, non-stop and ink
Power Supply
AC,50HZ/60HZ , 220v(±10%)>15A
Printing software
Photoprint 10 / Seeget
Optional
1. Air Compressor
Dimensions (W x D x H)
2000(W)X2700(L)X1500mm(H)
Net & Gross
560kg & 700kg
Package dimensions (W x D x H)
2.10 x 2.78 x 1.53 (M)
Minimum Work Area (Width x Depth x Height)
3.5 x 5.0 x 2.20 (M)
Operation environment
Temperature: 15-30℃(59-86℉)
Humidity: 40-80% RH (non-condensing)
Operating Noise ≤80dB
Safety Certification
CE Certification

Specifications subject to change without notice.
