Specification                                                                                              download


Model

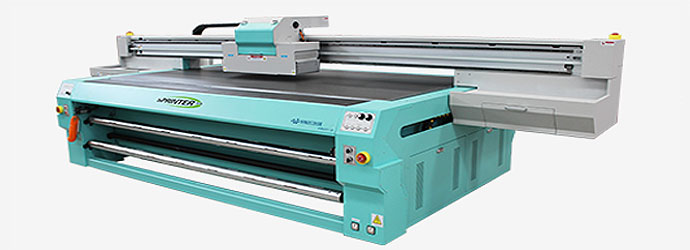

MAKECOLOR  FR2512
Color
C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Printhead
KM512/KM1024/PQ512
Top Resolution
UP TO 1440dpi
Speed
UP TO     48m2/h(8 PCS KM1024 heads double 4 color)
Media
Rigid & flexible media; paper, PVC, PE, PEtg, SAV, acrylic, polycarbonate, foamboard & composite boards, MDF, MDO, aluminum, wood, glass, corrugated fibre board & more
Size of Material
Maximum Printing Area:
Panel:2.68m(width)x 1.22m(depth)
Maximum Material Size:
Panel:2.7m(width)x 1.33m(depth)
Maximum Printing Area:
flexible media(width):2.5M
Maximum Material Size:
flexible media(width):2.53M
Thickness of Material
Panel:≤ 120mm
Weight of Material
Panel:≤ 45 kg/m2
Image format
Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on
Ink
UV Curing ink/LED Curing ink
Ink Capacity
2.5L drums, automatic ink control, non-stop and ink
Power Supply
AC 220V,6.5KW
Printing software
Photoprint 10 / Seeget
Optional
1. Air Compressor 2.Computer 3.UV LED lamp
Dimensions (W x D x H)
4.83 x 2.15 x 1.5 m
Net & Gross
1550kg & 1900kg
Package dimensions (W x D x H)
4.98 x 2.12 x 1.7 (M)
Minimum Work Area (Width x Depth x Height)
6.8 x 5.0 x 2.60 (M)
Operation environment
Temperature: 15-30℃(59-86℉)
Humidity: 40-80% RH (non-condensing)
Operating Noise ≤80dB
Safety Certification
CE Certification

Specifications subject to change without notice.
