Model |

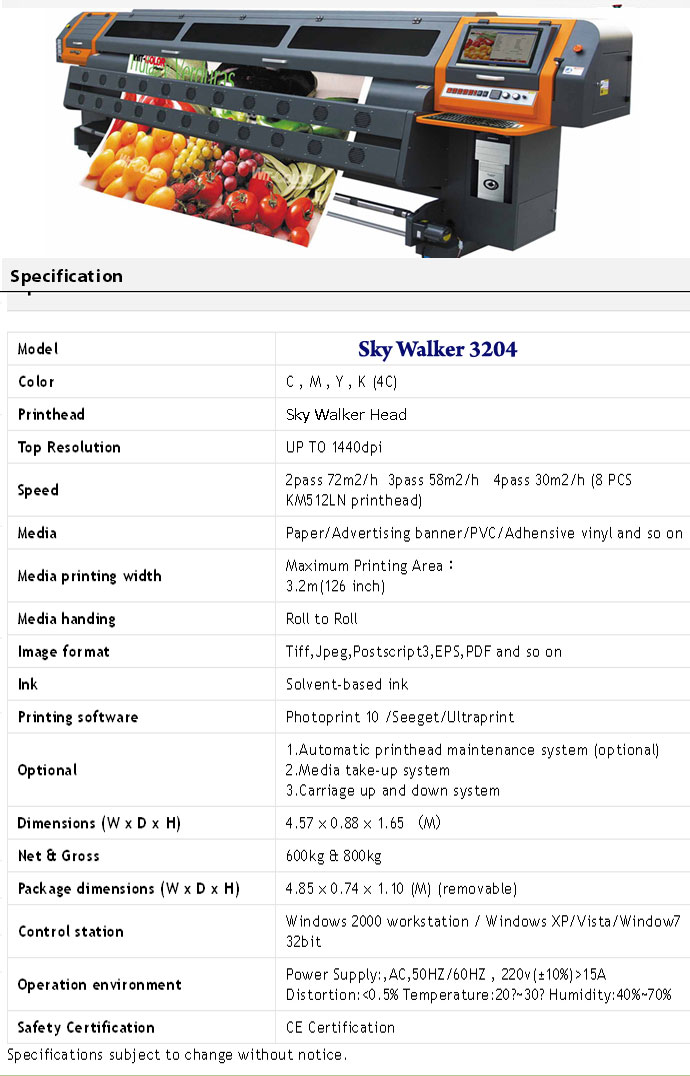

SOLVENT SKY WALKER 3204 |
Color |
C M Y K or C M Y K Lc Lm (white color and varnish are optional) |
Printhead |
SKY WALKER Head |
Top Resolution |
UP TO 1440dpi |
Speed |
Up to 65 ㎡/h (8 print heads in dual four colors) |
Media |
Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc. |
Size of Material |
Maximum Printing Area:
Panel:2.68m(width)x 1.22m(depth)
Maximum Material Size:
Panel:2.7m(width)x 1.33m(depth) |
Thickness of Material |
Panel:≤ 120mm |
Weight of Material |
Panel:≤ 45 kg/m2 |
Image format |
Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on |
Ink |
Environmental protective UV ink |
Ink Capacity |
2.5L drums, automatic ink control, non-stop and ink |
Power Supply |
AC,50HZ/60HZ , 220v(±10%)>15A |
Printing software |
Photoprint 10 / Seeget |
Optional |
1. Air Compressor |
Dimensions (W x D x H) |
4.82 x 2.0 x 1.5 (M) |
Net & Gross |
1300kg & 1650kg |
Package dimensions (W x D x H) |
4.98 x 2.12 x 1.7 (M) |
Minimum Work Area (Width x Depth x Height) |
6.8 x 5.0 x 2.60 (M) |
Operation environment |
Temperature: 15-30℃(59-86℉)
Humidity: 40-80% RH (non-condensing)
Operating Noise ≤80dB |
Safety Certification |
CE Certification |
Specifications subject to change without notice.
|
|
|
|
|
