Products

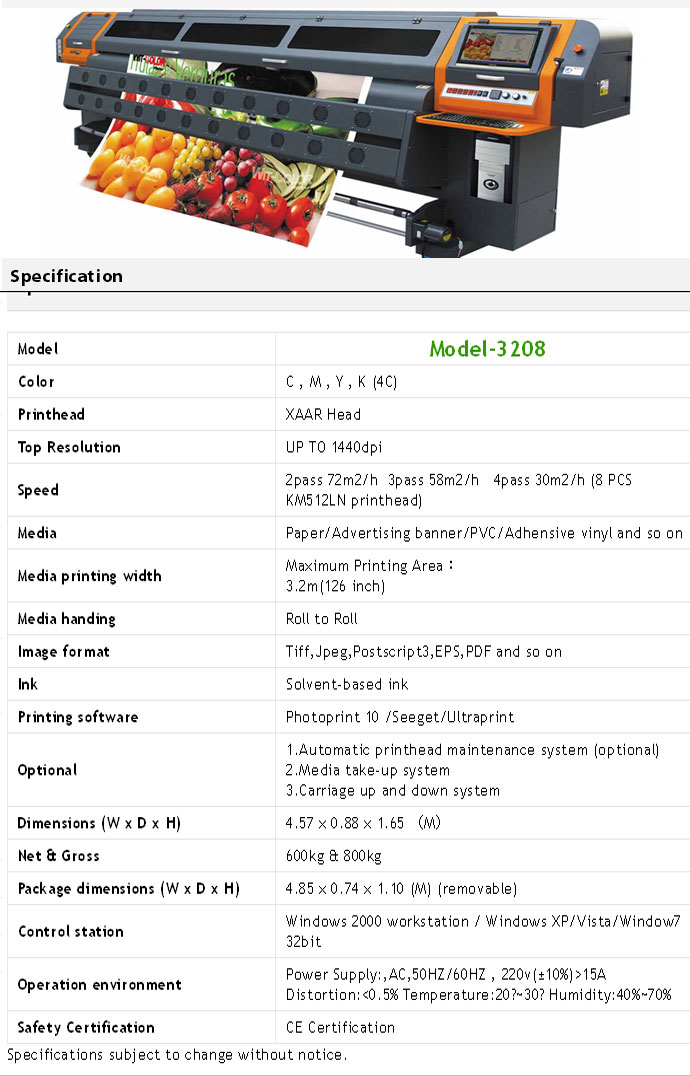

Specification                                                                                              download


Model
Model-3208
Color
C , M , Y , K (4C)
Printhead
XAAR Head
Top Resolution
UP TO 1440dpi
Speed
2pass 72m2/h  3pass 58m2/h   4pass 30m2/h (8 PCS KM512LN printhead)
Media
Paper/Advertising banner/PVC/Adhensive vinyl and so on
Media printing width
Maximum Printing Area:
3.2m(126 inch)
Media handing
Roll to Roll
Image format
Tiff,Jpeg,Postscript3,EPS,PDF and so on
Ink
Solvent-based ink
Printing software
Photoprint 10 /Seeget/Ultraprint
Optional
1.Automatic printhead maintenance system (optional)
2.Media take-up system
3.Carriage up and down system
Dimensions (W x D x H)
4.57 x 0.88 x 1.65 (M)
Net & Gross
600kg & 800kg
Package dimensions (W x D x H)
4.85 x 0.74 x 1.10 (M) (removable)
Control station
Windows 2000 workstation / Windows XP/Vista/Window7  32bit
Operation environment
Power Supply:,AC,50HZ/60HZ , 220v(±10%)>15A
Distortion:<0.5% Temperature:20?~30? Humidity:40%~70%
Safety Certification
CE Certification

Specifications subject to change without notice.
