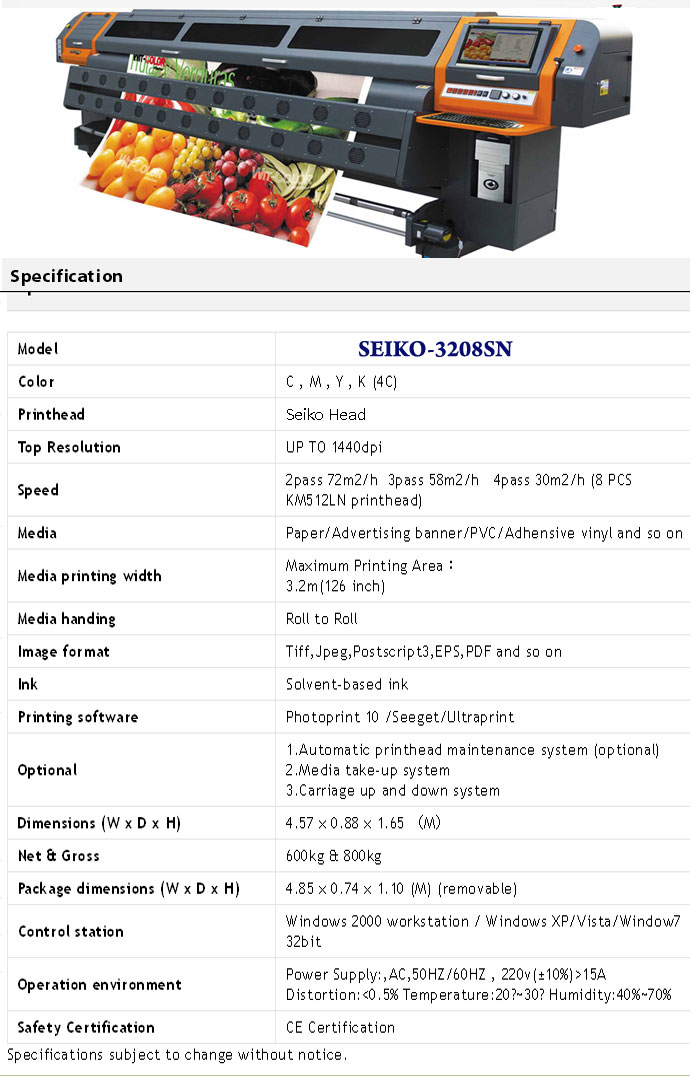

Specification                                                                                              download


Model
SOLVENT SEIKO 3208SN
Color
C M Y K or C M Y K Lc Lm (white color and varnish are optional)
Printhead
Seiko Head
Top Resolution
UP TO 1440dpi
Speed
Up to 65 ㎡/h (8 print heads in dual four colors)
Media
Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.
Size of Material
Maximum Printing Area:
Panel:2.68m(width)x 1.22m(depth)
Maximum Material Size:
Panel:2.7m(width)x 1.33m(depth)
Thickness of Material
Panel:≤ 120mm
Weight of Material
Panel:≤ 45 kg/m2
Image format
Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on
Ink
Environmental protective UV ink
Ink Capacity
2.5L drums, automatic ink control, non-stop and ink
Power Supply
AC,50HZ/60HZ , 220v(±10%)>15A
Printing software
Photoprint 10 / Seeget
Optional
1. Air Compressor
Dimensions (W x D x H)
4.82 x 2.0 x 1.5 (M)
Net & Gross
1300kg & 1650kg
Package dimensions (W x D x H)
4.98 x 2.12 x 1.7 (M)
Minimum Work Area (Width x Depth x Height)
6.8 x 5.0 x 2.60 (M)
Operation environment
Temperature: 15-30℃(59-86℉)
Humidity: 40-80% RH (non-condensing)
Operating Noise ≤80dB
Safety Certification
CE Certification

Specifications subject to change without notice.
